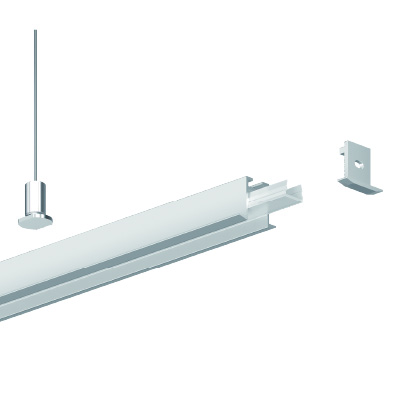

The aluminum profiles in the Uni-Line Series have diverse shapes and structures. In different spatial scenarios, they can be paired with PC Cover or neon silicone cover of different shapes to prevent glare and polarization, while also providing durability and eye protection. The profiles can be flexibly bent to meet various spatial requirements such as embedding, surface installation, and lifting. Use minimalist lines to outline the spatial contours and define advanced textures with delicate light and shadow. Hidden in the architectural texture during the day, releasing even soft light at night, giving every corner a flowing poetic quality. Both the sense of order in commercial spaces and the atmosphere in home environments can be accurately presented.
Widely used in indoor,office,shoppingmalls,hotels and other spatial scenarios.
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|
| QSG-UL2214B ALU White |
|
6063-T5 |
|
Embedded Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Black |
|
6063-T5 |
|
Embedded Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Silver |
|
6063-T5 |
|
Embedded Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Bronze |
|
6063-T5 |
|
Surface Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Gray SIlver |
|
6063-T5 |
|
Embedded Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Rose Gold |
|
6063-T5 |
|
Embedded Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Titanium Gold |
|
6063-T5 |
|
Embedded Installation |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|
| QSG-UL2214B ALU Opal |
|
PC | 30-40% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Diffuser |
|
PC | 70-80% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Black |
|
PC | 30-35% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Clear |
|
PC | 85-95% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-UL2214B ALU Silicone |
|
PC | 50-55% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|

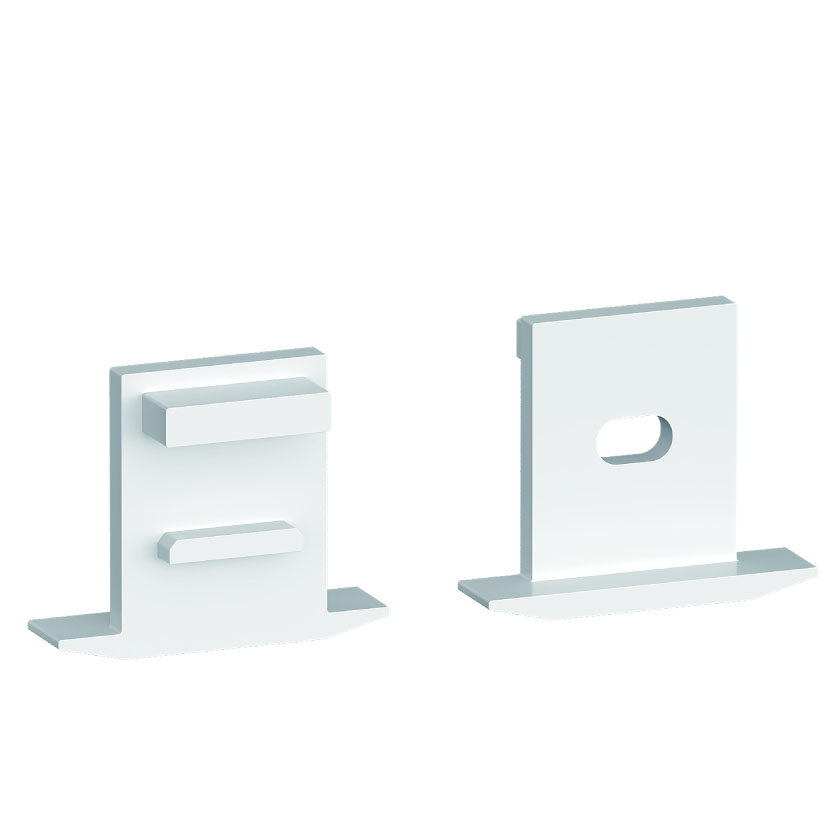

| QSG-UL2214B End Cap |
|
CNC/Aluminum |
|
Push In |
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| Clip |
|
Stainless Steel |
|
Press in |
| Pendant Kits |
|
Stainless Steel |
|
Press in |
| Straight Connector |
|
Stainless Steel |
|
Press in |
| L-Shape Connector |
|
Stainless Steel |
|
Press in |
| 90° Connector |
|
Stainless Steel |
|
Press in |
| Product Name | IP Rating | Voltage | Power | Size |
|---|
| Product Name | Material | Size |
|---|
