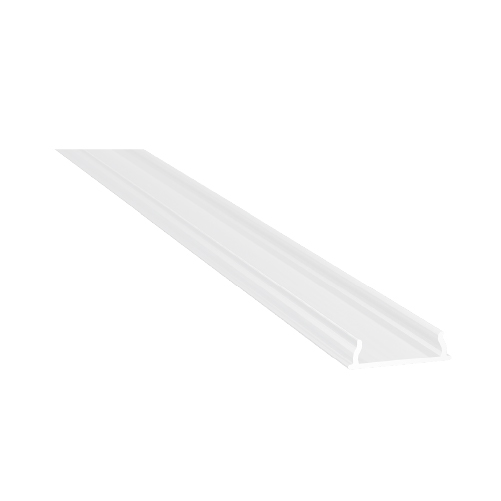

QSG-1407

Product Features

Aerospace-grade aluminum is heat-resistant. The 6063 aluminum alloy has excellent properties of heat resistance, corrosion resistance, and oxidation resistance.

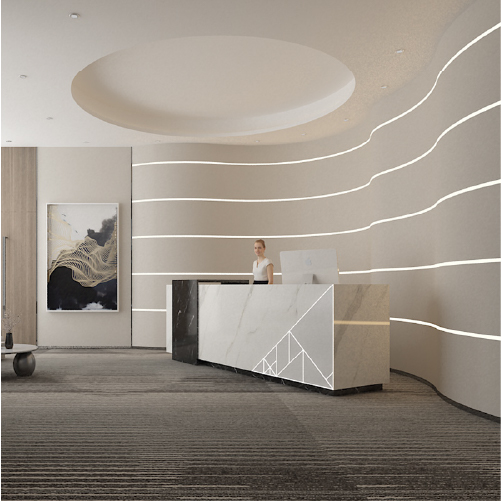

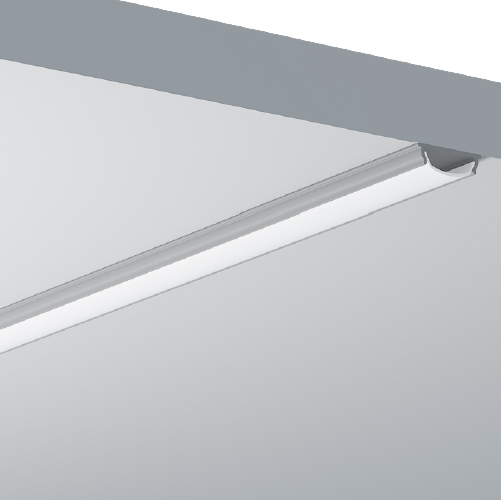

Applicable Scenarios

Aircraft-grade aluminum can withstand high temperatures
resistance, and oxidation
6063 aluminum alloy, with excellent quality of high temperature resistance, corrosion

Dimensional Drawing

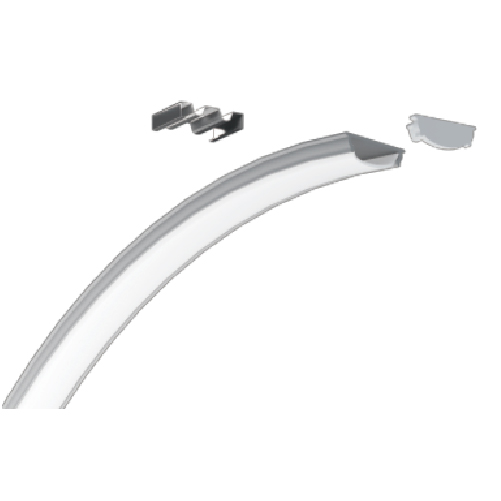

Product Composition

Product Name	Material	RAL (Customized other colors available)	Installation Method	Reference Length(Other lengths can be customized)

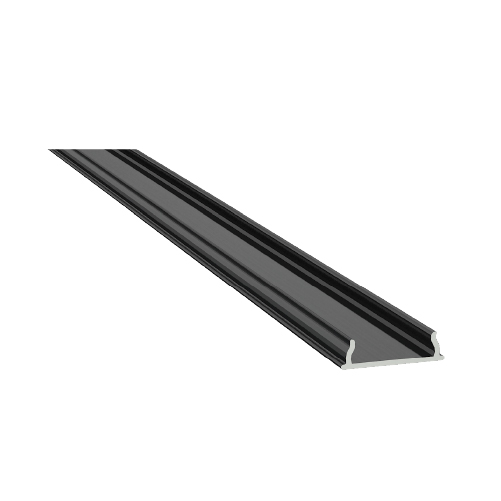

QSG-1407 ALU White	6063-T5	RAL 9005	Insert Mounting	1000mm 2000mm 2500mm 3000mm
QSG-1407 ALU White	6063-T5	RAL 9016	Insert Mounting	1000mm 2000mm 2500mm 3000mm

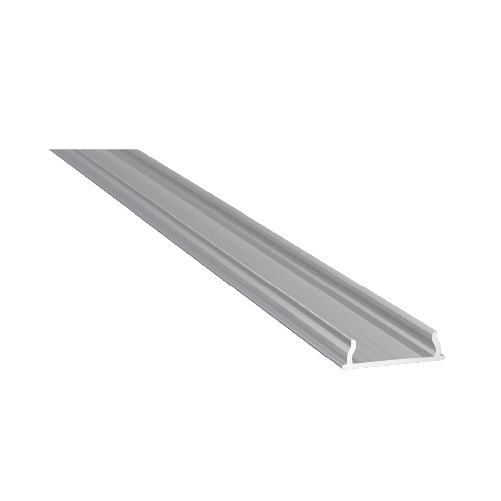

QSG-1407 ALU Silver	6063-T5	RAL 9006	Insert Mounting	1000mm 2000mm 2500mm 3000mm

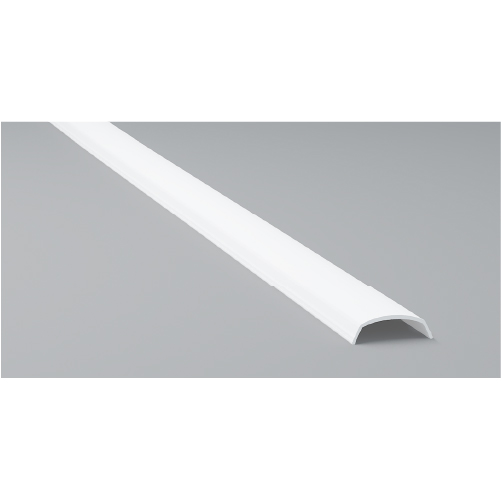

Product Name	Material	Transmittance	Fire Rating	Installation Method	Reference Length(Other lengths can be customized)

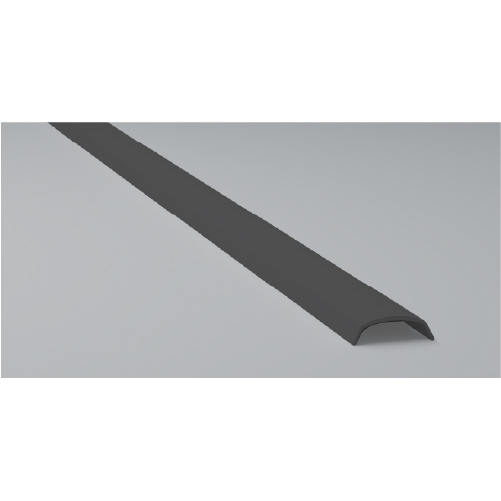

QSG-1407 Black	PC	35%-30%	V0	Push In	1000mm 2000mm 2500mm 3000mm

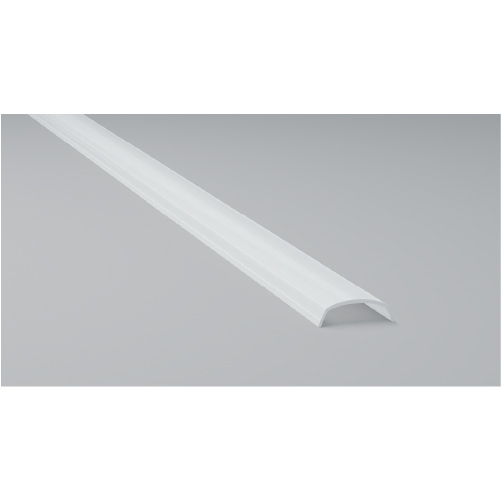

QSG-1407 Opal	PC	65%-60%	V0	Push In	1000mm 2000mm 2500mm 3000mm
QSG-1407 Diffuser	PC	80%-70%	V0	Push In	1000mm 2000mm 2500mm 3000mm

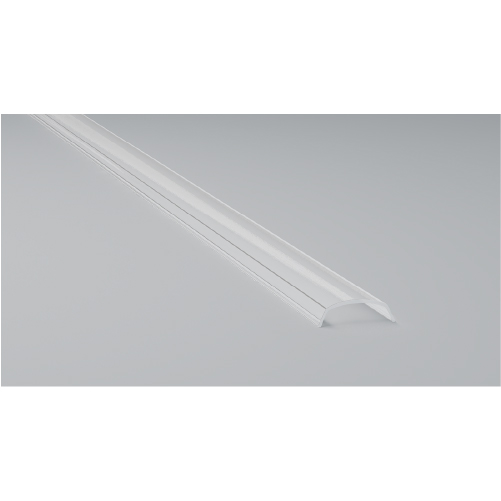

QSG-1407 Clear	PC	95-90%	V0	Push In	1000mm 2000mm 2500mm 3000mm
