M-05
Product Features
- The M series refers to the exquisite and small appearance of the product, suitable for lighting various corner gaps, fixed installation with double-sided buckles, structural internal buckles
- flush with the width of the profile, cover flush with the profile, and uniform light output, providing illumination for every corner gap.
Applicable Scenarios
suitable for lighting various corner gaps
Dimensional Drawing
Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|
| M-05 ALU Silver |
|
6063-T5 |
RAL 9006
|
Recessed Installation |
1000mm
2000mm
2500mm
3000mm
|
| M-05 ALU Black |
|
6063-T5 |
RAL 9005
|
Recessed Installation |
1000mm
2000mm
2500mm
5000mm
|
| M-05 ALU White |
|
6063-T5 |
RAL 9016
|
Recessed Installation |
1000mm
2000mm
2500mm
5000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|

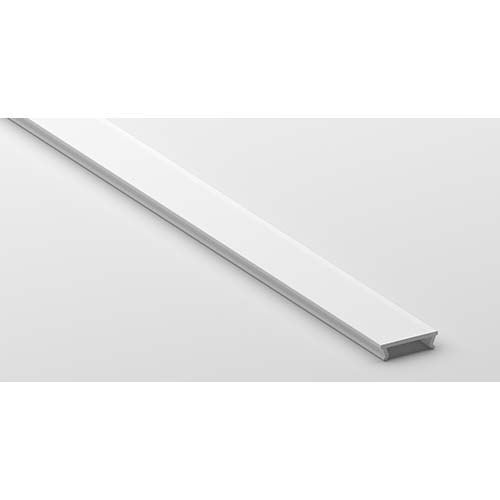

| M-05 diffuser |
|
PC | 70%-80% | 20 | Press in |
1000mm
2000mm
3000mm
10000mm
|
| M-05 Opal |
|
PC | 60%-65% | 20 | Press in |
1000mm
2000mm
3000mm
5000mm
|

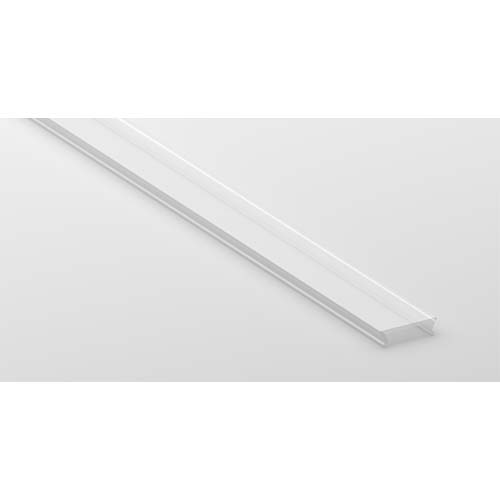

| M-05 Clear |
|
PC | 95%-90% | 20 | Press in |
1000mm
2000mm
3000mm
5000mm
|

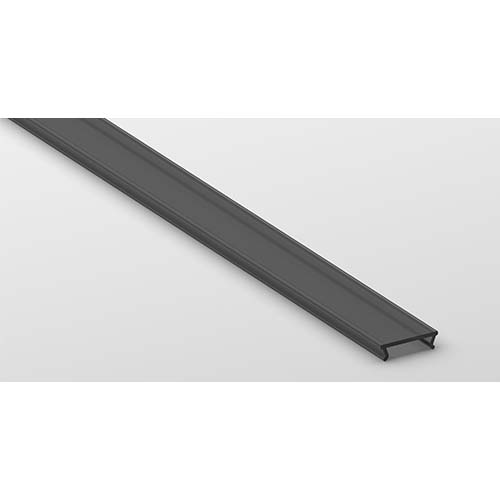

| M-05 Black diffuser |
|
PC | 55%-50% | 20 | Press in |
1000mm
2000mm
3000mm
5000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|

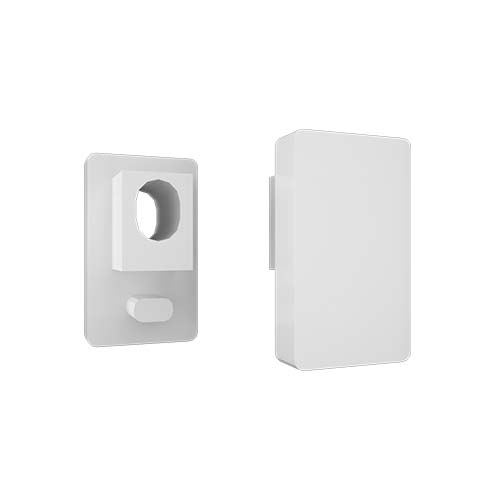

| M-05 End-Caps |
|
pp |
Black
White
Grey
Silver
|
Push In |
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| M-05 Clips |
|
Stainless Steel |
Silver
|
Press in |
